Concrete formwork
Panel formwork:
- High-performance-assembly formwork for walls
aimed at both the building construction and civil
engineering sectors. - Mainly composed of panels, joined with clamps,
providing great versatility and excellent concrete
finishes. - Designed to withstand high concrete pressures.
- Ideal for building any kind of vertical concrete structure:
walls, columns, abutments, footings, etc.

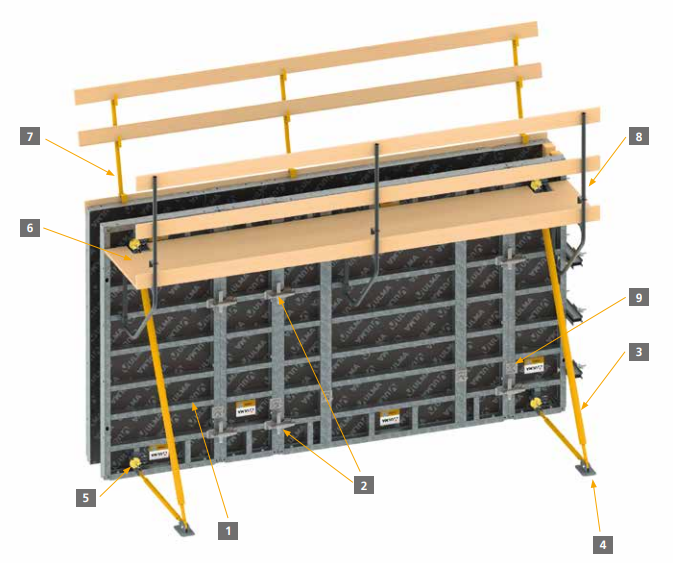

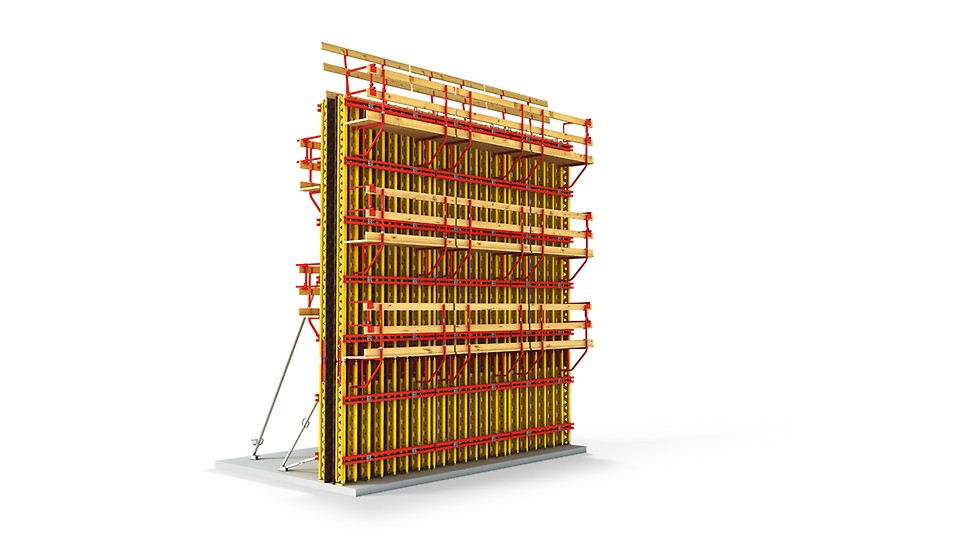

System components:
- Panel
- Clamp
- Push-pull prop
- Push-pull prop shoe
- Head 60
- Working platform (Walkway bracket, board and toeboard)
- Front handrail
- Walkway bracket
- Tying (plate washer nut and tie rod)
Features:
Designed to withstand high concrete pressures
(certified by GSV).
Range of panels:

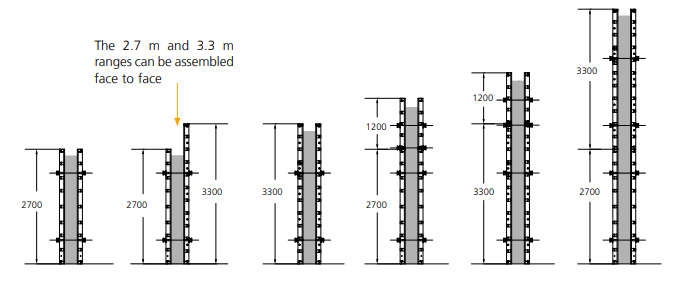

. Panel heights: 3.3 m / 2.7 m / 1.2 m / 0.6 m.
Permissible concrete pressure:
. Panel 3.3 m: 80 kN/m2.
. Panel 2.7 m: 74 kN/m2.
. Panel widths:
2.4 m / 1.2 m / 0.9 m / 0.75 m / 0.6 m / 0.45 m / 0.3 m.
Maximum deflection:
. 60 kN/m2 (line 7, table 3 DIN 18202).
. 80 kN/m2 (line 6, table 3 DIN 18202).
Concrete pouring:
. For a concrete pouring height < 3.3 m, 2 anchorages
at heights are required.
. For a concrete pouring height > 3.3 m, 3 anchorages
at heights are required.
Benefits:
High cost-effectiveness:
. High number of uses. A robust panel, coated or
hot-dip galvanised with reinforced steel frame on the
corners, giving the panel high durability.
. Saves assembly time thanks to clamps that make joints
between panels quick and simple.
Reinforced steel frame.
Adjustable clamp, whose functions are joining, aligning and stiffening.
. Minimal infilling and filler work

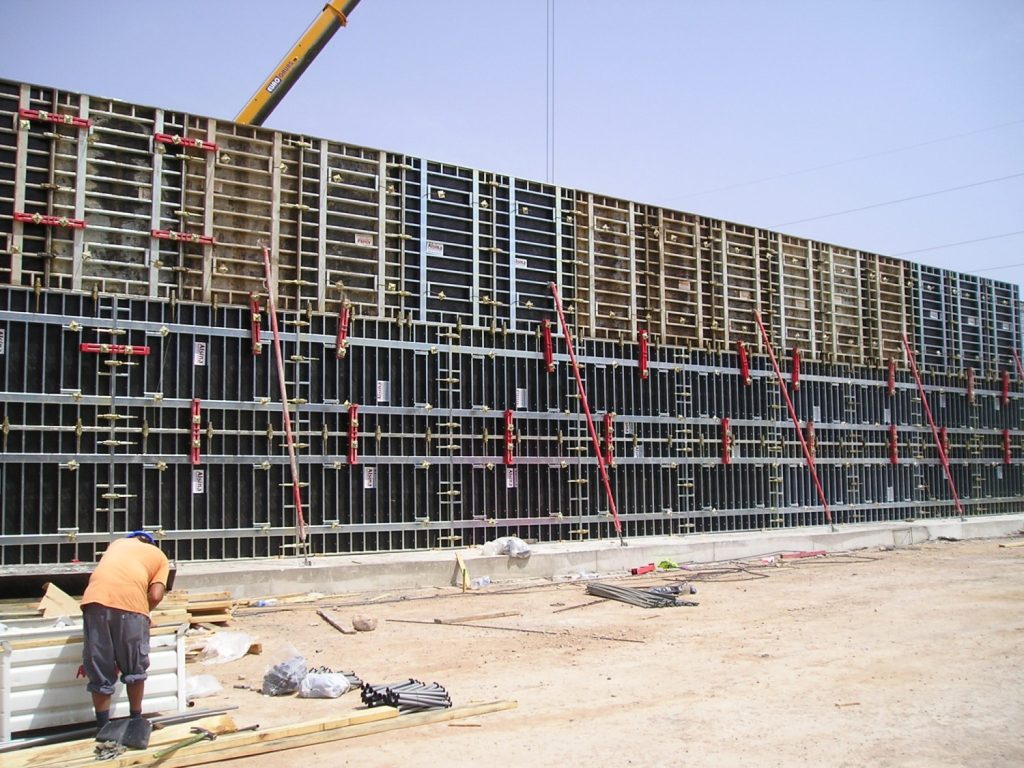

High versatility:

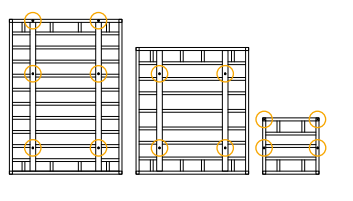

. Reinforced side holes on the profiles, allowing the
stopend, corner and pilaster solutions to be built.
. Wide range of panels allowing better adaptation to
each project requirement. Panels can be placed in both
the vertical and horizontal positions.
